Resistive Humidity Sensor

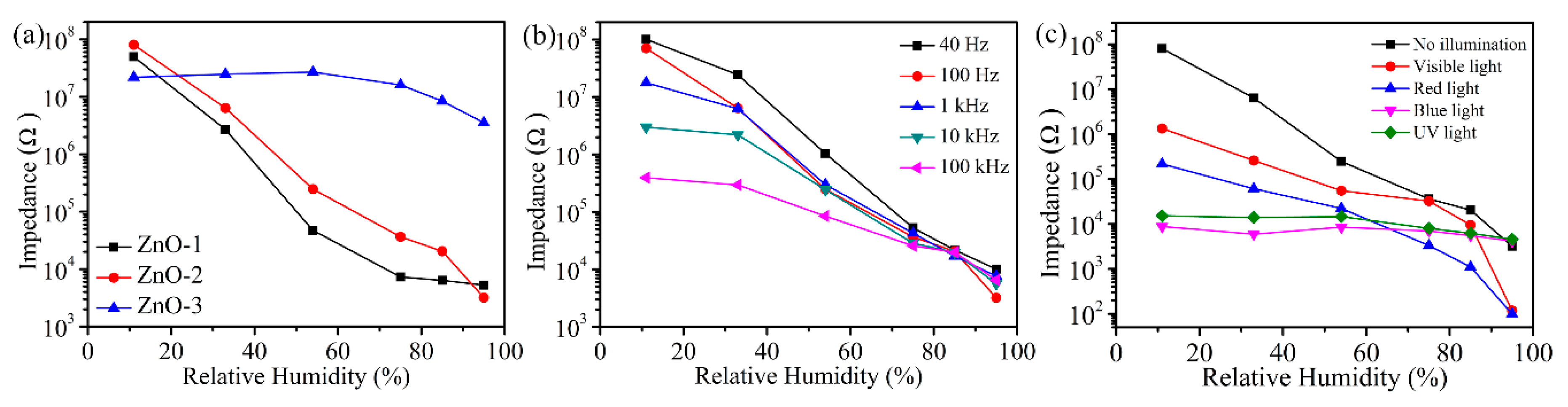

Resistive humidity sensors measure the impedance change, which usually has an inverse exponential relationship to humidity (Figure 1222) Typically, the impedance change of a medium such as a conductive polymer, salt, or treated substrate is measured.

Resistive humidity sensor. Humidityresistive, elastic, transparent ion gel and its use in a wearable, strainsensing device In addition, excellent performance of this ion gel as a strain sensor was obtained, giving a conductivity increase with the factor of 100 compared with raw PVC gel We show its application in human motion using a glove attached to the ion gel. This work presents the development of novel fluorinated graphene (FG)based resistive humidity sensor The humidity sensor was fabricated by dropcasting FG suspension, as the humidity sensing material, on silver (Ag)based interdigitated electrodes (IDEs) The silverbased IDEs were screen printed on a flexible polyimide substrate The FG suspension was synthesized by uniform dispersion of FG. Relative humidity sensors come in both capacitive and resistive versions Humidity changes the dielectric constant of the insulating layer between two metal plates in capacitive sensors, while.

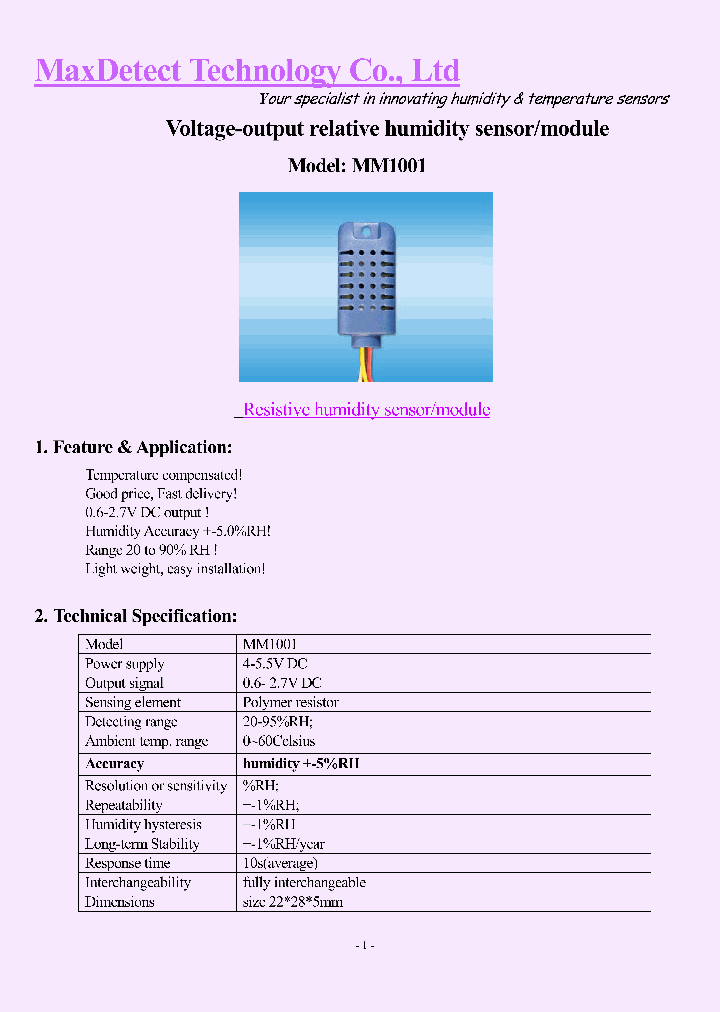

Resistive humidity sensors have significant temperature dependencies when installed in an environment with large (greater than 10°F) temperature fluctuations Simultaneous temperature compensation is incorporated for accuracy The small size, low cost, interchangeability and longterm stability make these resistive sensors suitable for use in. Resistive type humidity sensors pick up changes in the resistance value of the sensor element in response to the change in the humidity Basic structure of resistive type humidity sensor from TDK is shown below Fig 5 A Figure Illustrating the Basic Structure of a Resistive Type Humidity Sensor. AMT1001 Resistive Temperature & Humidity Sensor Probe by QBAIHE Price $569 $499 shipping This fits your Make sure this fits by entering your model number Resistive temperature and humidity sensors Specifications for this item Brand Name QBAIHE Ean Model Number.

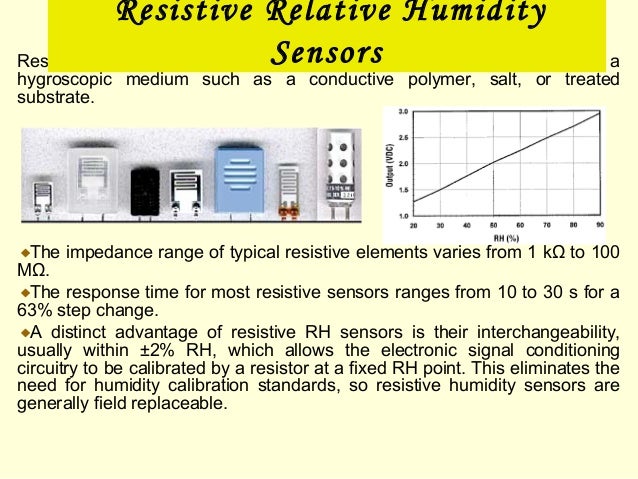

Amt1001 Resistive Humidity Module, Humidity Sensor RYWS301 Ambient temperature humidity & pressure sensor is a professional measurement of air temperature, relative humidity & barometric pressure Sensors are builtin the waterproof and antiUV shelter. Resistive humidity sensors measure the change in electrical impedance of a hygroscopic medium such as a conductive polymer, salt, or treated substrate Resistive sensors are based on an interdigitated or bifilar winding After deposition of a hydroscopic polymer coating, their resistance changes inversely with humidity. Resistive sensors work on a similar principle to capacitive sensors, where electrical change is measured to produce a value for relative humidity However, the mechanism in this system is different Although resistive sensors use a hygroscopic (moistureabsorbing) material similar to the capacitive system, the difference is that the measurement is of the resistance change in the material rather than the capacitance.

Resistive humidity sensors measure changes in electrical impedance in the hygroscopic medium The sensors usually consist of precious metal electrodes deposited on a substrate coated with a conductive polymer, salt or other activating chemicals The sensor absorbs water and ionic functional groups are dissociated, resulting in a conductivity. Featuring polymer capacitance humidity sensors, models are available in 2%, 3% or 5% accuracies Duct mounted transmitters are available with an optional twoline alpha numeric LCD display For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables. Resistive or Electrical Conductive Humidity Sensors are relatively small scale, lowcost sensors They are also used in a variety of industrial, domestic, or residential and commercial uses Thermal Conductivity Humidity Sensors Thermal Conductivity Humidity Sensors are often known as Absolute Humidity (AH) Sensors are thermal conductivity humidity sensors as they measure Absolute Humidity.

Resistive, capacitive, and impedancebased humidity sensors have similar device structure and are commonly used due to their facile fabrication, simplicity of operation, costeffectiveness, and low driven power 5,6,7 The performance of any type of humidity sensor is strongly dependent on the functional material which can bring good change to. This page covers advantages and disadvantages of humidity sensor It mentions humidity sensor advantages or benefits and humidity sensor disadvantages It covers Capacitive, Psychrometric and Hygrometric air humidity measurement methods Definition The sensor which measures humidity is known as humidity sensor Moisture refers to water content. ACIAutomation Components Humidity Sensors, RH with Resistive Temperature Output Series Item Number A/RH110KSR2 Series RH with Resistive Temperature Output Overview Documents Product Description Room, 1% Application Indoor Input 15~40 VDC, 18~28 VAC Output 4~ mA Humidity Range 0 to 100% RH Approvals CE.

1 · 1 comment Arduino and Remote XY A Quick Primer 1. HR2 Resistive Humidity Sensor – HalfBaked!. Temperature and humidity sensor has a resistive humidity sensor and a NTC temperature sensor, onewire communication mode Application Temperature and humidity sensor is widely used in HVAC, dehumidifiers, automobile, data loggers, humidity regulators, and humidity detection and control system Specification.

Resistive Soil Moisture Sensor Digital Analog Signal Output for Arduino The probe uses analog resistance to detect the moisture content of the soil It is a good plant helper to make you know if your plants are thirsty and it can also be used in the automatic watering system, garden, greenhouse, etc. Humidity Sensors Capacitive Humidity Sensors Resistive Humidity Sensor Sensirion SHT75 Digital Humidity Sensor EE Elektronik HMC01 Thermal Conductivity Humidity (Absolute Humidity) Sensor Ohmic Instruments UPS650 Aosong HR2L hygristor Ohmic Instruments ABS300 Honeywell HIH6100 Temperature and Humidity Sensor. The sensitivity and output range of the sensor can be easily controlled by changing the electrode spacing or geometry, – The control of humidity is important in many applications ranging from bio‐medical to space exploration, – A simple, easy to fabricate and measure, and low cost resistive‐type humidity sensor was developed.

A resistivetype relative humidity (RH) sensor based on vanadium complex (VO 2 (3fl)) film is reported in this study Gold electrodes were deposited on the glass substrates in a coplanar structure A thin film of vanadium complex was coated as a humiditysensing material on the top of the prepatterned electrodes. 1 Infrared Close Object Alert 1 Vactrol A Lazy Walk ElectroSchematicscom 1 Poor man's Driveway Alarm Circuit 1 How to Build a Cheap Panic Alarm/Button?. These sensors measure temperature and humidity, then send that information to your PLC or controller to regulate heating and cooling equipment, alarms, and data recorders Choose a sensor that works with your digital IOLink or analog 4 mA system.

The sensor measures the soil moisture levels by capacitive sensing, rather than resistive sensing like other types of moisture sensor The ability to prevent corrosion is because it is made of a corrosion resistant material giving it a long service life. Humidityresistive, elastic, transparent ion gel and its use in a wearable, strainsensing device In addition, excellent performance of this ion gel as a strain sensor was obtained, giving a conductivity increase with the factor of 100 compared with raw PVC gel We show its application in human motion using a glove attached to the ion gel. T ypically, resistive humidity sensors offer the adv antages of simple electrical circuits, high sensitivity and good linearity Ho wever, humidity hysteresis is a problem 10 REVIEW.

Resistive type humidity sensors pick up changes in the resistance value of the sensor element in response to the change in the humidity Basic structure of resistive type humidity sensor from TDK is shown below Fig 5 A Figure Illustrating the Basic Structure of a Resistive Type Humidity Sensor. Nominal operating temperatures for resistive RH sensors range from 40 to 100°C They should have a life expectancy of over five years, though exposure to chemical vapors and other contaminants like. 1 Infrared Close Object Alert 1 Vactrol A Lazy Walk ElectroSchematicscom 1 Poor man's Driveway Alarm Circuit 1 How to Build a Cheap Panic Alarm/Button?.

Resistive humidity sensors usually consist of a hygroscopic (absorbs moisture) medium such as conductive salt or polymer deposited over noble metal electrodes on a nonconductive substrate When the sensor is in the presence of water vapor it is absorbed, causing the functional ionic groups to disassociate, and resulting in increased conductivity. Resistive Resistive humidity sensors utilize ions in salts to measure the electrical impedance of atoms As humidity changes, so do the resistance of the electrodes on either side of the salt medium Thermal Two thermal sensors conduct electricity based upon the humidity of the surrounding air One sensor is encased in dry nitrogen while the. This sensor includes a resistivetype humidity measurement component and an NTC temperature measurement component, and connects to a highperformance 8bit microcontroller, offering excellent quality, fast response, antiinterference ability and costeffectiveness Page 3 Each DHT11 element is strictly calibrated in the laboratory that is.

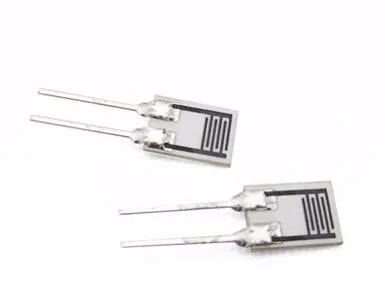

A resistive humidity sensor, sometimes referred to as a hygristor or an electrical conductivity sensor, is one that makes use of the change in the resistivity measured between two electrodes to establish a value of relative humidity. Resistive, capacitive, and impedancebased humidity sensors have similar device structure and are commonly used due to their facile fabrication, simplicity of operation, costeffectiveness, and low driven power 5,6,7 The performance of any type of humidity sensor is strongly dependent on the functional material which can bring good change to. A resistive humidity sensor, sometimes referred to as a hygristor or an electrical conductivity sensor, is one that makes use of the change in the resistivity measured between two electrodes to establish a value of relative humidity The device contains a hygroscopic conductive layer in the form of a polymer humidity sensing film that is.

Firstly, capacitive RH sensors are not the same as resistive ones For my sensor, I have to read out the resistance, and eliminate the capacitive component I still must use unbiased AC to avoid permanent damage to the sensor There is another user on electrotechonlinecom who had the same problem He passes the AC through a cap to eliminate. Sensor signals using analog voltage output This module has high accuracy, high reliability, consistency;. Firstly, capacitive RH sensors are not the same as resistive ones For my sensor, I have to read out the resistance, and eliminate the capacitive component I still must use unbiased AC to avoid permanent damage to the sensor There is another user on electrotechonlinecom who had the same problem He passes the AC through a cap to eliminate.

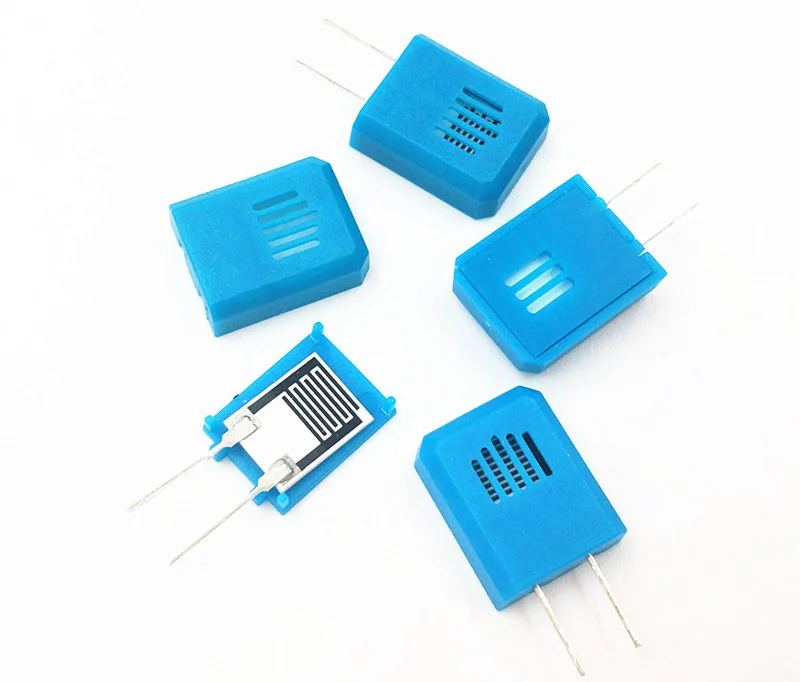

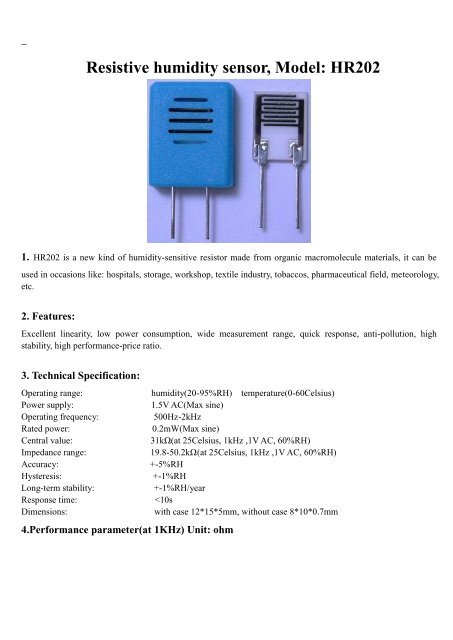

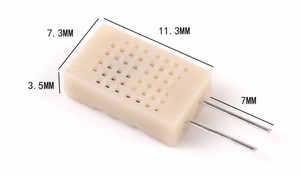

Resistive Humidity Sensor Model IM Email to a Friend Be the first one to review this product HR2 is a new kind of humiditysensitive resistor made from organic macromolecule materials, it can be used in occasions like hospitals, storage, workshop, textile industry, tobaccos, pharmaceutical field, meteorology, etc. Resistive humidity sensor, Model HR2 1 HR2 is a new kind of humiditysensitive resistor made from organic macromolecule materials, it can be used in occasions like hospitals, storage, workshop, textile industry, tobaccos, pharmaceutical field, meteorology, etc 2 Features. HR2 Resistive Humidity Sensor – HalfBaked!.

1 Infrared Close Object Alert 1 Vactrol A Lazy Walk ElectroSchematicscom 1 Poor man's Driveway Alarm Circuit 1 How to Build a Cheap Panic Alarm/Button?. AMT1001 Resistive Humidity and Temperature Sensor Module in which AMT1001 is an integrated temperature and humidity sensor;. Its resistance changes inversely with humidity The impedance change is typically an inverse exponential relationship to humidity Note that most resistive humidity sensors use symmetrical AC excitation voltage with zero DC bias to prevent polarization of the sensor The resulting current flow is converted and rectified to a DC voltage signal.

Resistive humidity sensor SHSL Product no SHOP 0381 0002 No ratings This humidity sensor SHSL is a resistive dew sensor with miniaturized dimensions for detecting the beginning of condensation Weight kg 5,80 €* 5,80 € 1 pc. Resistive Humidity Sensors (Electrical Conductivity Sensors) Resistive Humidity Sensors are another important type of Humidity Sensors that measure the resistance (impedance) or electrical conductivity The principle behind resistive humidity sensors is the fact that the conductivity in non – metallic conductors is dependent on their water content. • Resistive Require sensor material that changes R when touched Relatively low cost, but is an additional element to the BOM Humidity effects Temperature Component tolerances Voltage drift.

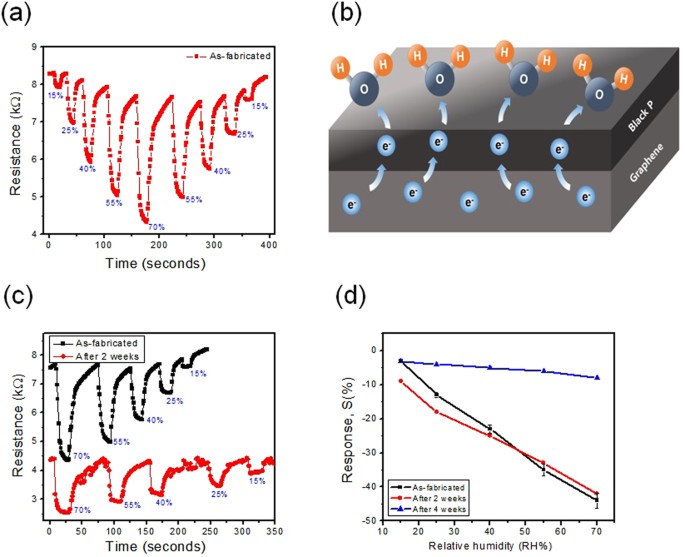

In order to benchmark the investigated resistive graphene humidity sensors against a commercial product and other suggested potential nanotechnologies, Fig 6a shows a comparison with the characterized humidity range of a number of different humidity sensors reported in the literature 4,14–16,42,43 The graphene sensor in the present study. The resistance of the printed GNP thin film decreases significantly upon exposure to water vapor and exhibits a semilog relationship with relative humidity (RH) The sensor can detect RH variations from 18 to 95% with large resistance changes up to 4 orders of magnitude with no hysteresis and small temperature dependence. Resistive Humidity Sensor HR2 is a new kind of humiditysensitive resistor made from organic macromolecule materials, it can be used in occasions like hospitals, storage, workshop, textile industry, tobaccos, pharmaceutical field, meteorology, etc.

AMT1001 capacitive humidity sensing temperature and humidity, the module relative humidity sensor circuit integrated product modules supply voltage to DC voltage, the voltage output Zhong line relative humidity, the module has high accuracy, high reliability, consistency, and withtemperature compensation to ensure longterm stability, ease of. 1 · 1 comment Arduino and Remote XY A Quick Primer 1. HR2, humidity sensor, humidity resistance, humidity probe (with shell) Overview HR2 is a new kind of humiditysensitive resistor made from organic macromolecule materials, it can be used in occasions like hospitals, storage, workshop, textile industry, tobaccos, pharmaceutical field, meteorology, etc Features Excellent linearity Low power consumption Wide measurement range Quick.

And has been with temperature compensation to ensure longterm stability, ease of use and low price and other. ACIAutomation Components Humidity Sensors, RH with Resistive Temperature Output Series Item Number A/RH110KSR2 Series RH with Resistive Temperature Output Overview Documents Product Description Room, 1% Application Indoor Input 15~40 VDC, 18~28 VAC Output 4~ mA Humidity Range 0 to 100% RH Approvals CE. 1 · 1 comment Arduino and Remote XY A Quick Primer 1.

HR2 Resistive Humidity Sensor – HalfBaked!. Many capacitive or resistive humidity sensors cannot accurately measure high humidity because of surface water condensation and saturation of hygrosopic material in the sensors Here, we propose a. “RHIC” humidity sensors are laser trimmed so that at V SUPPLY = 5 V, the output voltage typically spans 08 V to 39 V for the 0% RH to 100% RH range at 25 ºC (Sensor specific calibration data printouts and BFLs at 25 ºC are either included or available as an option on every sensor) The HIH4602C incorporates an RHIC humidity sensor, a.

In a variable resistance humidity sensor, the resistance of the sensor element changes in response to humidity changes, and the resistance changes are extracted as electrical signals The basic structure of a variable resistance humidity sensor is shown in Figure 2 A noble metal thick film conductor such as gold or ruthenium oxide is printed. Amt1001 Resistive Humidity Module, Humidity Sensor RYWS301 Ambient temperature humidity & pressure sensor is a professional measurement of air temperature, relative humidity & barometric pressure Sensors are builtin the waterproof and antiUV shelter. Relative humidity sensors usually contain a humidity sensing element along with a thermistor to measure temperature For a capacitive sensor, the sensing element is a capacitor Here the change in electrical permittivity of the dielectric material is measured to calculate the relative humidity values Low resistivity materials are used for the construction of a Resistive sensor.
